Modern TV sideboard made of MDF blank, by Koen

Related projects
TOSIZE Furniture
Check out our new shelf cabinets 3D configurator
Logo TOSIZE.ieStart composing right away

Create this project yourself with sheet material cut to size by!





1 minuut


18mm TV Sideboard MDF blank with 30mm top mdf blank . Inside with 3 shelves and concealed hinges for the doors. Painted in satin black.

Customized DIY TV furniture

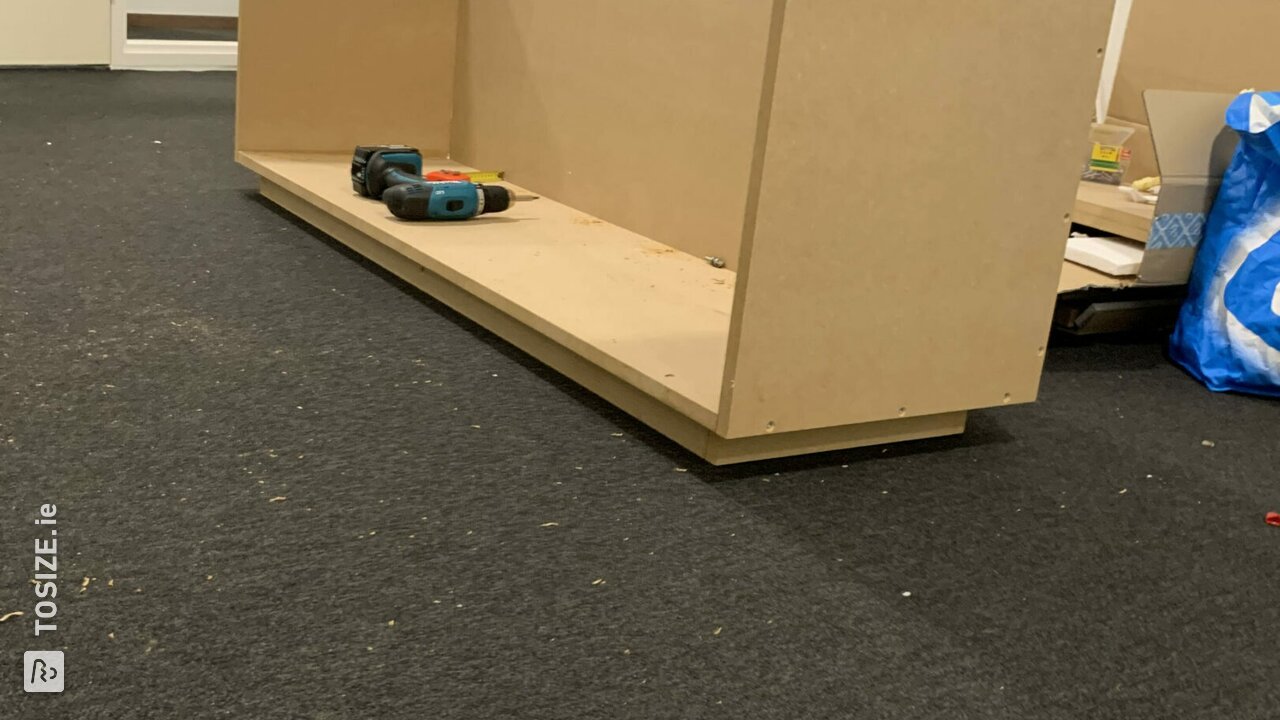

The TV sideboard was drawn in 3d via SketchUp to get a good idea of the required panels. Based on this 3d model, the sizes have been calculated, from which the saw list on is made. For mounting I used wood glue, Rotadrill MDF screws. Screw holes are pre-drilled and countersinked with a countersink. After mounting, the screw holes are filled with MDF filler. The ends of the cabinet are provided with a smooth layer of lacquer putty. The cabinet has been sanded in its entirety with a small grain of sandpaper. The cabinet has been primed with a black primer (mixed) and coated with black satin lacquer.

The dimensions of the TV cabinet

Height: 65.0 cm Width: 150.0 cm Depth 45.0 cm

How next?

Want to make this DIY project? Check out Koen's saw list and complete your order easily.
